French doors earn their place in Coral Gables homes by doing two jobs at once: they open a room to the outdoors while framing that view with clean, honest lines. The VLX 100 Double Swing door from ViewLux does both better than most. TruePane Windows & Doors installs this paired aluminum system for homeowners from the Biltmore area to Cocoplum, and the feedback is consistent: people want the light, the symmetry, and a door that still operates like new after five humid summers. As an authorized ViewLux installation partner, we handle everything from measurements to final water testing. Call (954) 507-3613 to start a quote.

Call (954) 507-3613

Product Overview - VLX 100 Double Swing / French Door

The VLX 100 is a paired aluminum French door system, with two panels that swing from the sides and meet in the middle. The visual signature is symmetrical sightlines: the center stiles mirror each other precisely, so the door reads as a single balanced unit rather than two panels competing for attention. That matters in Coral Gables, where Mediterranean Revival and contemporary designs sit on the same block, and a door that can’t hold its visual line against stucco or glass starts to look like an afterthought.

The flush threshold is the feature homeowners appreciate most in daily use. Nobody wants a raised track in the middle of a doorway that connects a kitchen to a lanai or a living room to a pool deck. The VLX 100 sits level with the finished floor, so you can move furniture, walkers, or a loaded drink tray through without tripping. Multi-point lock hardware secures the door at the top, bottom, and center with a single throw of the handle. It’s a security feature that also keeps the panels sealed tight against wind and water. Coral Gables gets real afternoon storms in the summer, and a door that only locks at the handle will flex under pressure. This one doesn’t.

We recommend the VLX 100 to Coral Gables homeowners replacing sliding doors that have gone stiff, or retrofitting older wood French doors that swell and stick in the humidity. Aluminum doesn’t absorb moisture, doesn’t warp, and doesn’t need the seasonal maintenance wood demands.

Technical Specifications

The VLX 100 is built on a 2.56-inch profile width with a 0.098-inch wall thickness. That’s a substantial extrusion, and it’s why the door can span openings up to 96 inches wide without bowing or sagging. Here’s the full spec picture:

• Profile width: 2.56 inches (65mm)
• Aluminum wall thickness: 0.098 inches
• Maximum span: Up to 96 inches wide
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or none
• Hardware: Multi-point lock, top/bottom/center engagement
• Threshold: Flush, ADA-friendly transition

ViewLux engineers these extrusions for coastal markets. The thicker wall means the frame holds its square through thermal cycling, which in Coral Gables means 40-degree morning-to-afternoon swings and relentless UV exposure. Thin aluminum eventually fatigues. This profile is spec’d not to.

Performance Features

Thermal Efficiency

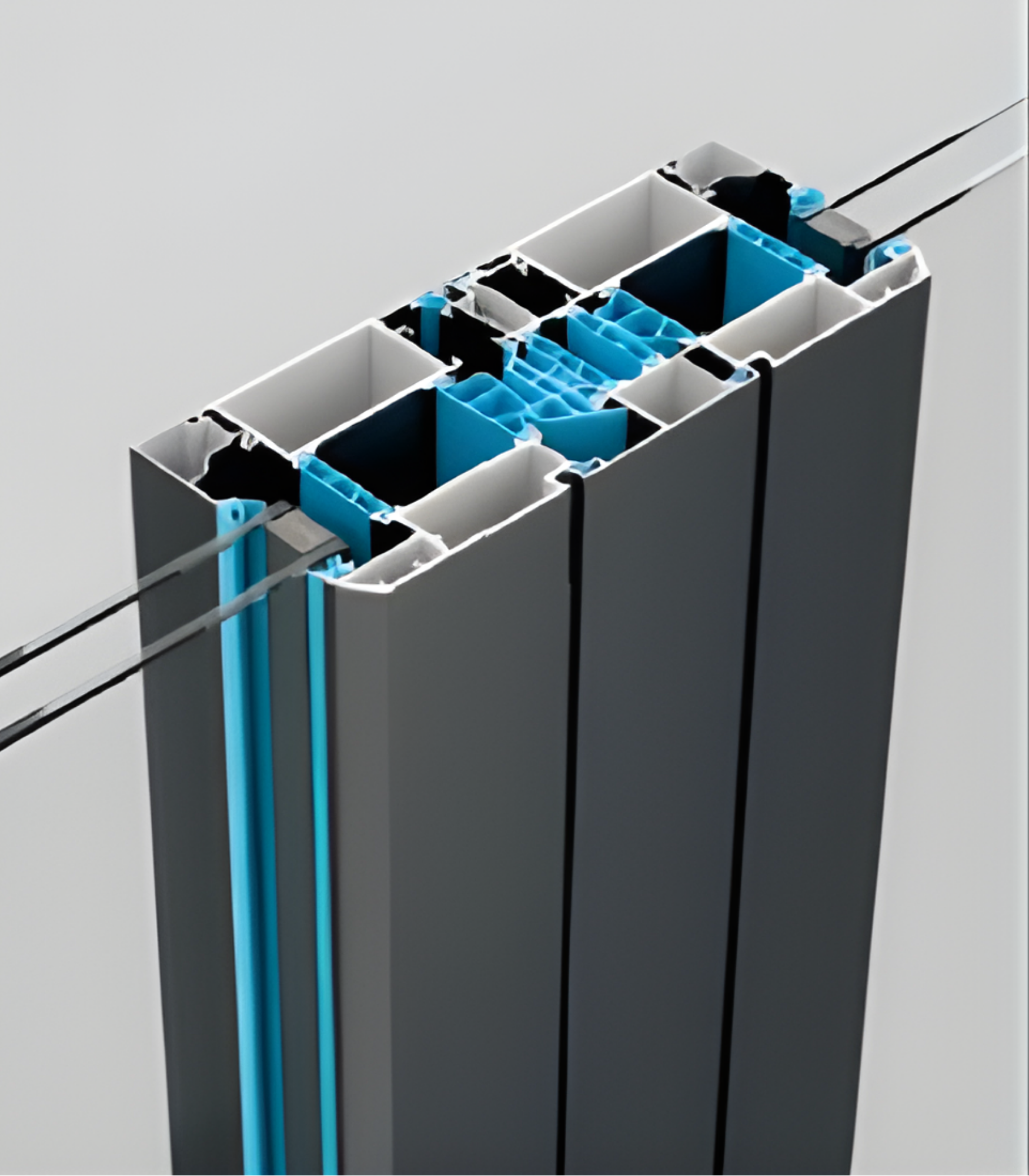

Thermal break technology separates the interior and exterior aluminum faces with a non-conductive material, cutting heat transfer through the frame. The NFRC-rated performance means your cooling load doesn’t spike just because the door faces west across your Coral Gables patio.

Acoustic Performance
The multi-point lock compresses the panels against the weatherstripping along the full height of the door. That compression is what seals out noise. Laminated glass takes it further, damping mid-range sound from traffic on Le Jeune or bird chatter echoing off courtyard walls.

Airtightness & Weather Seal
Every perimeter joint gets sealed with AAMA 812 low-expansion foam sealant during installation. Combined with continuous weatherstripping, the door meets airtightness standards that stop the fine dust and humidity that drift through older leaky frames in Coral Gables.

Waterproofing

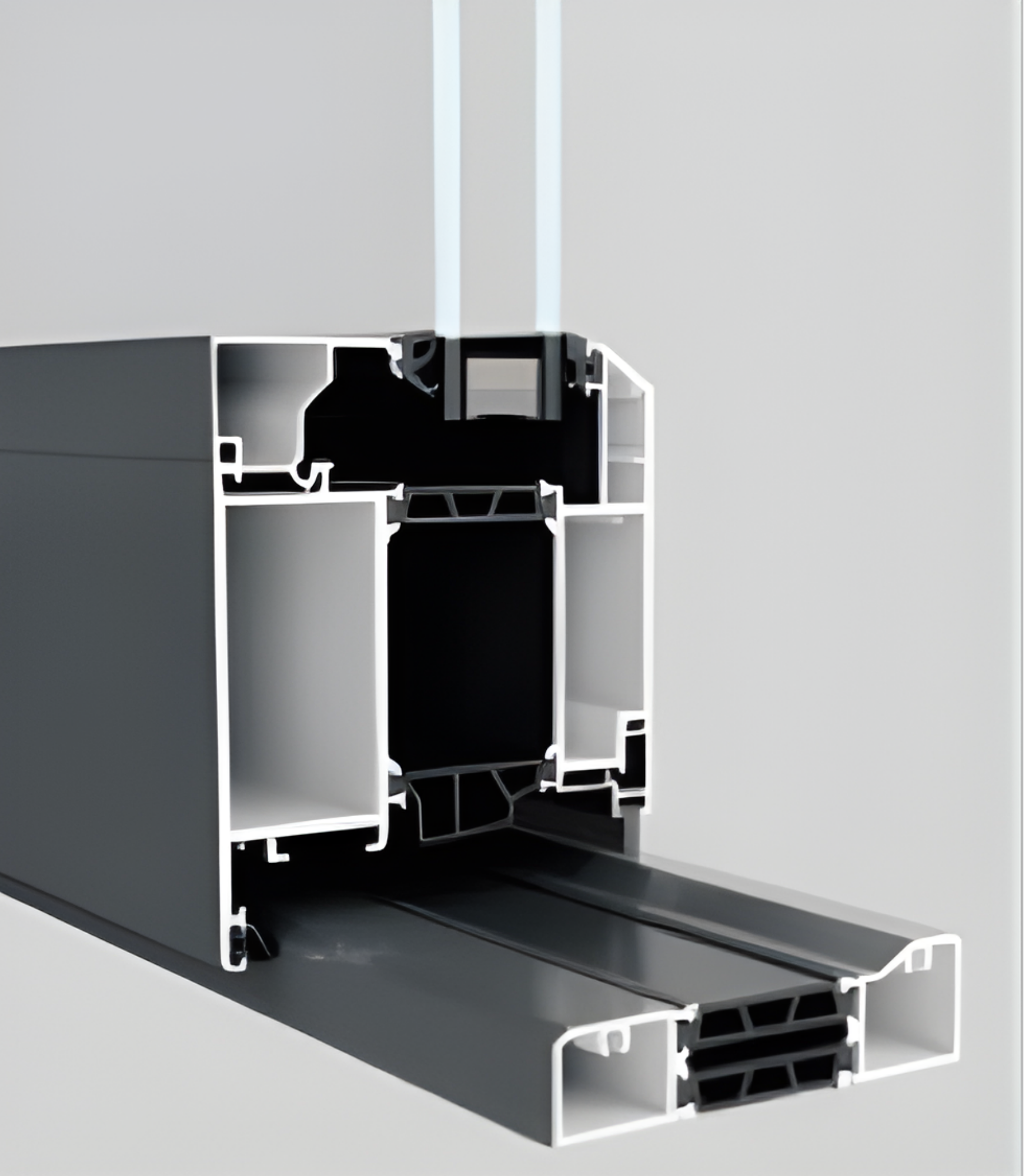

The flush threshold doesn’t mean water gets a free pass. The sill design channels water outward and away from the interior, and the perimeter foam seal prevents moisture from wicking behind the frame into the rough opening.

Wind Resistance
ViewLux rates the VLX 100 for wind loads appropriate to South Florida code requirements. The laminated glass option adds impact resistance, which is the configuration we recommend for any Coral Gables opening that isn’t protected by hurricane shutters.

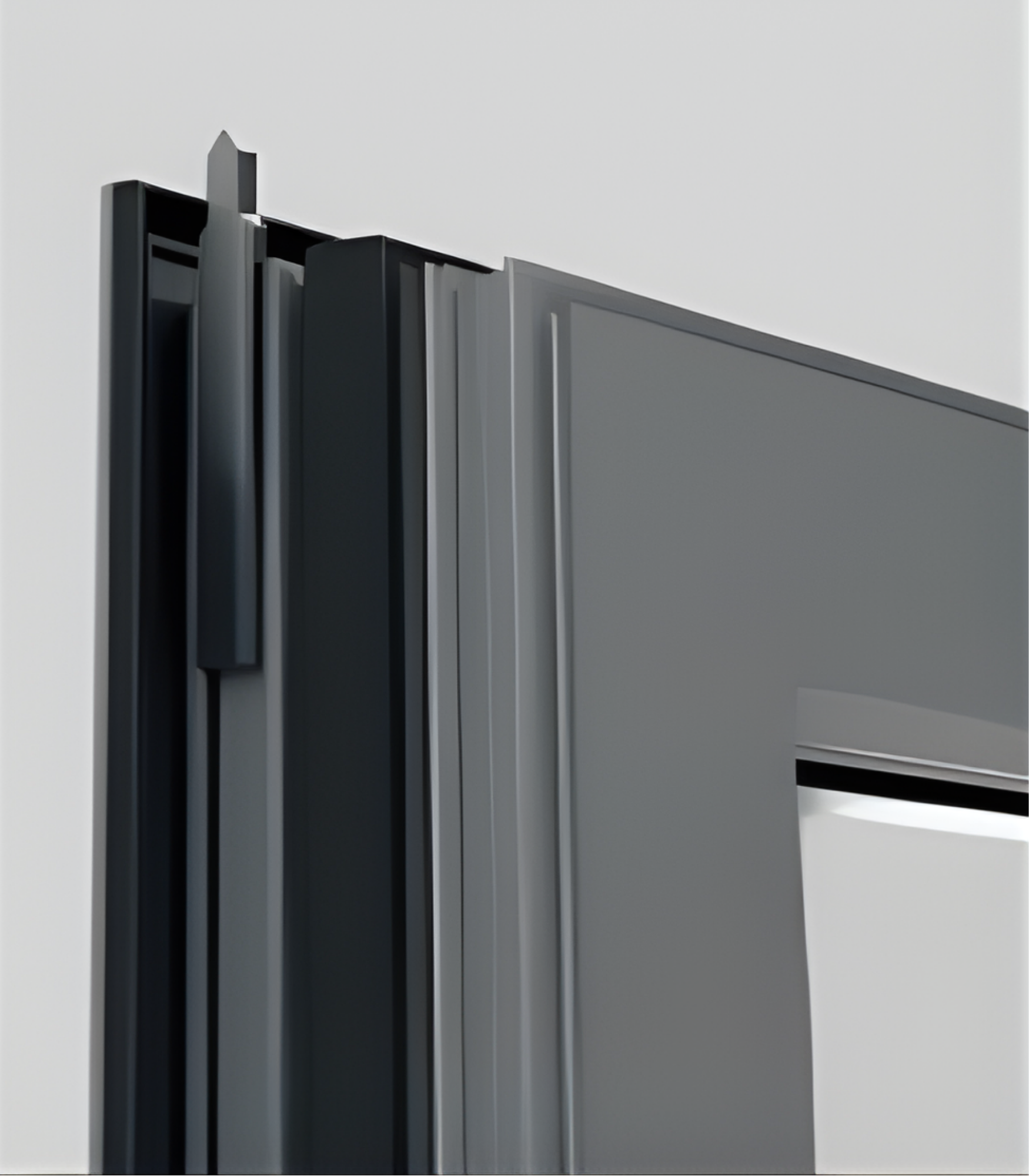

Security & Hardware
Multi-point locking means the door is secured at three points along the frame, not just at one deadbolt. Forced entry is dramatically harder. The hardware throw is smooth, with no stick or grind, even after years of daily use.

Color & Glass Options

Six finishes cover most Coral Gables design directions. Premium Black reads modern and sharp against white stucco or glass railings. Pure White blends into traditional Med Revival facades where the door should disappear into the architecture. Anodized Silver is the most durable of the group: the anodizing process bonds color into the aluminum itself, so salt air and sun exposure don’t fade it the way paint eventually will.

Bronze and Champagne sit between warm and cool, and both look right at home on the earth-toned walls common in older Gables neighborhoods. Teak Wood gives you the look of a wood French door without any of the maintenance: no staining, no swelling, no termite risk.

Glass choice depends on what the door faces. Low-E is our default for energy performance in Coral Gables. Frosted or Obscure glass works for doors that need privacy, like a master suite or a bathroom access. Tempered glass is standard in door applications for safety. Laminated glass adds impact resistance and real noise reduction, and it’s what we recommend for unprotected openings on the windward side of the house.

Installation by TruePane Windows & Doors in Coral Gables

Installation is where French doors succeed or fail, and that’s not marketing language. A door that’s out of square by a quarter inch will fight the lock on every close. A frame that’s not sealed at the perimeter will leak in the first heavy storm. We install the VLX 100 to AAMA 2400/2410 installation standards, which is the benchmark spec for window and door installation in the United States.

Our process starts with a pre-install inspection of the rough opening. We check the framing for rot, measure in six places, and confirm the opening can carry the door’s weight without sagging. Then we set the frame level, plumb, and square, shimming to within an eighth of an inch tolerance. Low-expansion AAMA 812 foam goes on every perimeter joint. This step matters in Coral Gables more than most markets: the humidity here finds any path into a wall cavity, and once moisture gets behind a frame, you get mold, rot, and a door that sticks.

After securing the frame, we hang both panels, adjust the multi-point hardware so it throws clean, and run a water test on the sill and perimeter. Cleanup is full; we haul the old door if you want it gone. Improper installation voids the ViewLux manufacturer warranty. That’s a real risk when you hire a generalist who installs one French door a year. We install aluminum door systems weekly across Coral Gables, South Miami, and Pinecrest.

Frequently Asked Questions - VLX 100 Double Swing / French Door

Get a Quote - VLX 100 Double Swing / French Door in Coral Gables

Ready to price the VLX 100 for your home? We’ll schedule a free on-site measurement in Coral Gables, walk through glass and finish options with you, and give you a written line-item quote with no change orders. Call (954) 507-3613 to book your measurement. If you’d rather start the conversation online, reach out and we’ll get back to you within one business day.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partners serving Coral Gables, FL and surrounding Miami-Dade neighborhoods.
