VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Coral Gables, FL | TruePane Windows & Doors

The VLX 100 Swing / Entry Door is a modern aluminum single-entry door built around one idea: clean lines with serious structural integrity. We install this door throughout Coral Gables, and it’s become a favorite for homeowners who want a striking front entry without the bulk of traditional wood or the flimsiness of cheap vinyl. The minimalist frame holds a multi-point locking system that feels vault-solid when it closes. As an authorized ViewLux installation partner, TruePane Windows & Doors brings factory-backed installation expertise to every Coral Gables project. Call (954) 507-3613 to talk specs, pricing, or scheduling.

Call (954) 507-3613

Product Overview - VLX 100 Swing / Entry Door

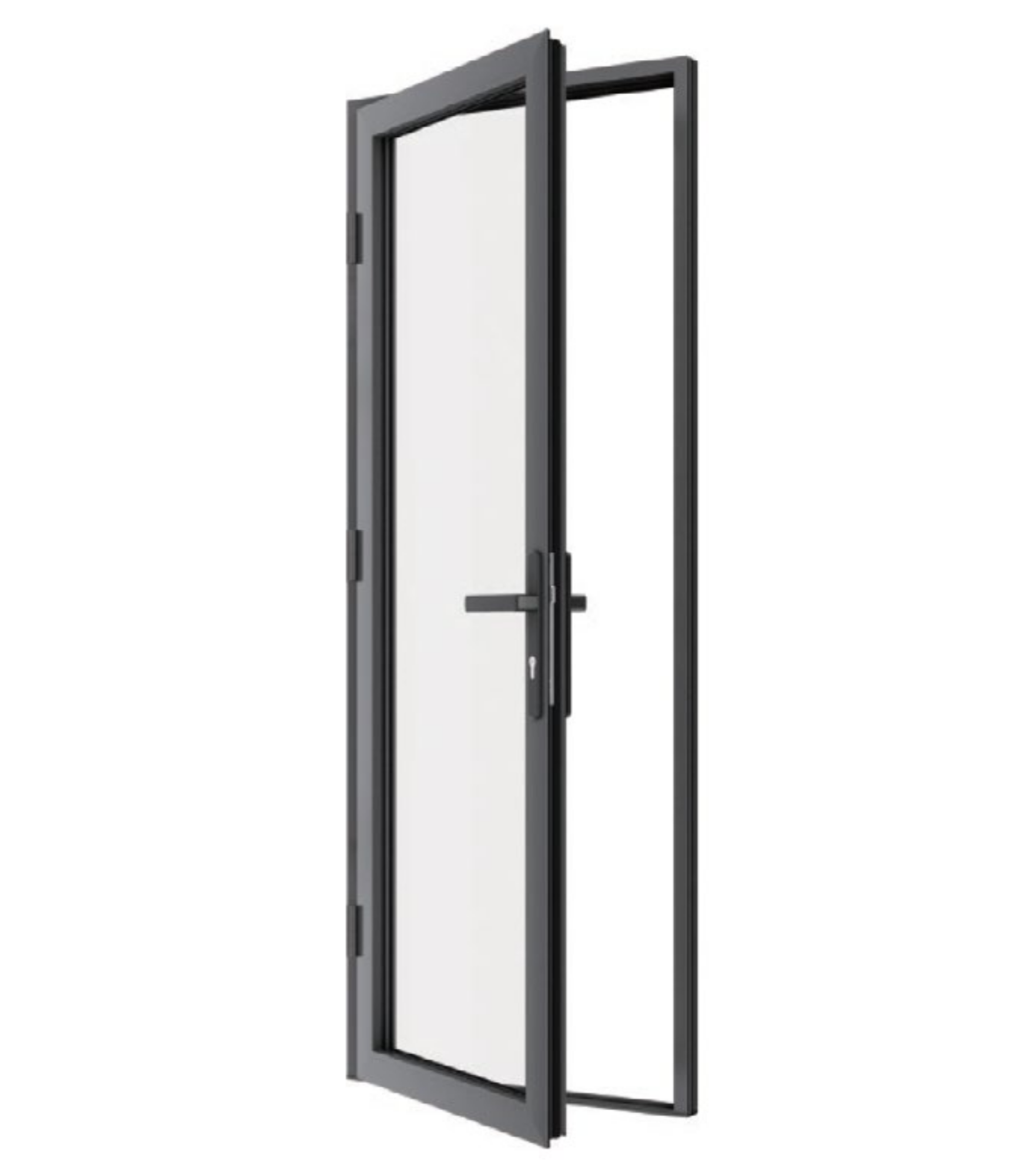

The VLX 100 Swing / Entry Door earns its place in modern Coral Gables architecture by doing less visually and more structurally. The design intent is straightforward: a single entry door with a minimalist aluminum frame that lets the glass do the talking while the engineering stays hidden. That narrow 2.56-inch profile width creates sightlines most entry doors can’t match, which is exactly why architects and designers in Coral Gables keep specifying it for contemporary homes and mid-century remodels near the Biltmore and the Granada Golf Course corridors.

What you don’t see is where the door proves itself. The aluminum frame uses a 0.098-inch wall thickness, which resists racking and deflection better than the thinner extrusions found on economy doors. That matters in South Florida, where heat, humidity, and hurricane-season wind loads punish entry doors daily. The multi-point locking hardware engages at multiple points along the frame, not just the latch, so the door seals tight and holds fast. For Coral Gables homeowners replacing a worn-out entry or building new, this series offers the durability of commercial aluminum with proportions that suit a residential facade.

TruePane Windows & Doors carries this line because it holds up. We’ve installed the VLX 100 on Coral Gables properties from Cocoplum to Snapper Creek, and the feedback is consistent: the door feels premium every time it swings open.

Technical Specifications

Here’s exactly what the VLX 100 Swing / Entry Door brings to the table, in plain terms:

• Frame wall thickness: 0.098-inch aluminum extrusion, built to resist twisting and sagging over decades of daily use in Coral Gables humidity
• Profile width: 2.56 inches, delivering a slim sightline that maximizes glass area and natural light
• Maximum panel span: Up to 48 inches wide for a single swing panel, with larger openings handled through paired configurations
• Glass types: Clear for unobstructed views, Frosted and Obscure for privacy at street-facing entries, Low-E for heat rejection, Tempered for safety, Laminated for impact resistance
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood-grain finish
• Screen option: Retractable screen available for bug-free ventilation, or no screen for a pure architectural entry
• Performance standards: AAMA 2400/2410 installation compliance and AAMA 812 low-expansion foam sealant at every perimeter joint

All hardware, hinges, and locking components are specified for the South Florida coastal environment, which means they’re selected to survive salt air and intense UV exposure year after year.

Performance Features

Thermal Efficiency - The VLX 100’s aluminum frame carries a thermal break that interrupts heat transfer between the outside face and the interior. For Coral Gables homeowners running air conditioning ten months a year, that break means lower heat gain at the entry, less condensation on the interior frame, and real energy savings. The NFRC-rated assembly backs these claims with independent testing numbers, not marketing guesses.

Acoustic Performance - A solid multi-point seal around the full perimeter cuts street noise noticeably. Homes along Coral Way, LeJeune Road, or near the University of Miami get a quieter interior when the VLX 100 replaces an older door with single-point latching. Combined with laminated glass, the reduction in outside sound is substantial.

Airtightness & Weather Seal - The multi-point locking hardware pulls the door tight against the weather seal at every locking point, not just the latch. That stops the micro-gaps that cause drafts, drive up energy bills, and let humid outside air seep in during Coral Gables summers. We verify the seal at installation, so you get the performance the door was engineered to deliver.

Waterproofing - Every perimeter joint receives AAMA 812-compliant low-expansion foam sealant during our installation. This prevents water intrusion at the frame-to-wall interface, which is where most door failures start in South Florida’s driving-rain season. The door system itself includes integrated drainage that channels any incidental water back outside.

Wind Resistance - The 0.098-inch wall thickness and reinforced aluminum frame are wind-load rated for local code requirements. Coral Gables sits in a high-velocity wind zone, and this door is engineered for those pressures. Impact-resistant laminated glass is available and highly recommended for any elevation that takes direct wind or flying debris during a storm.

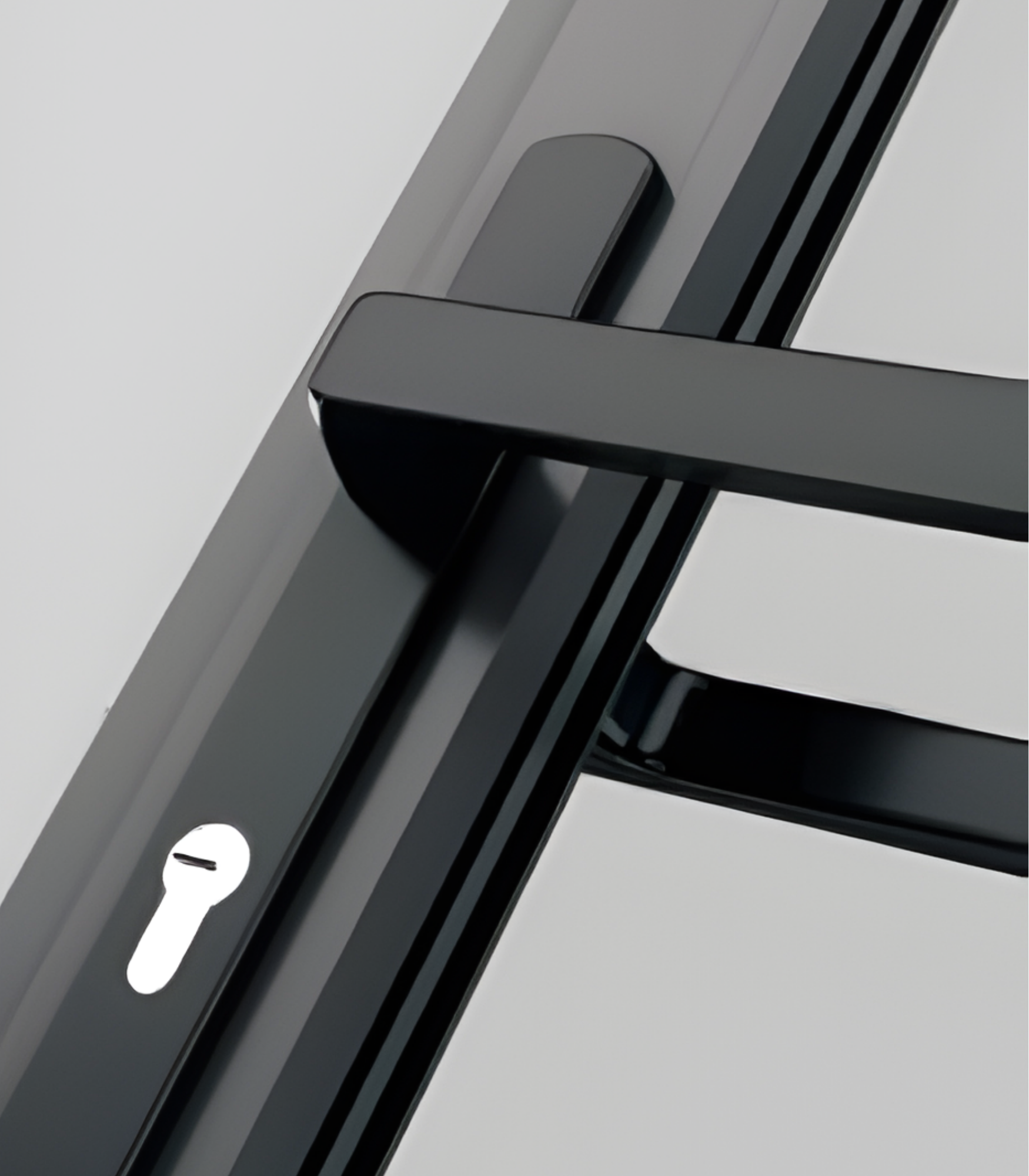

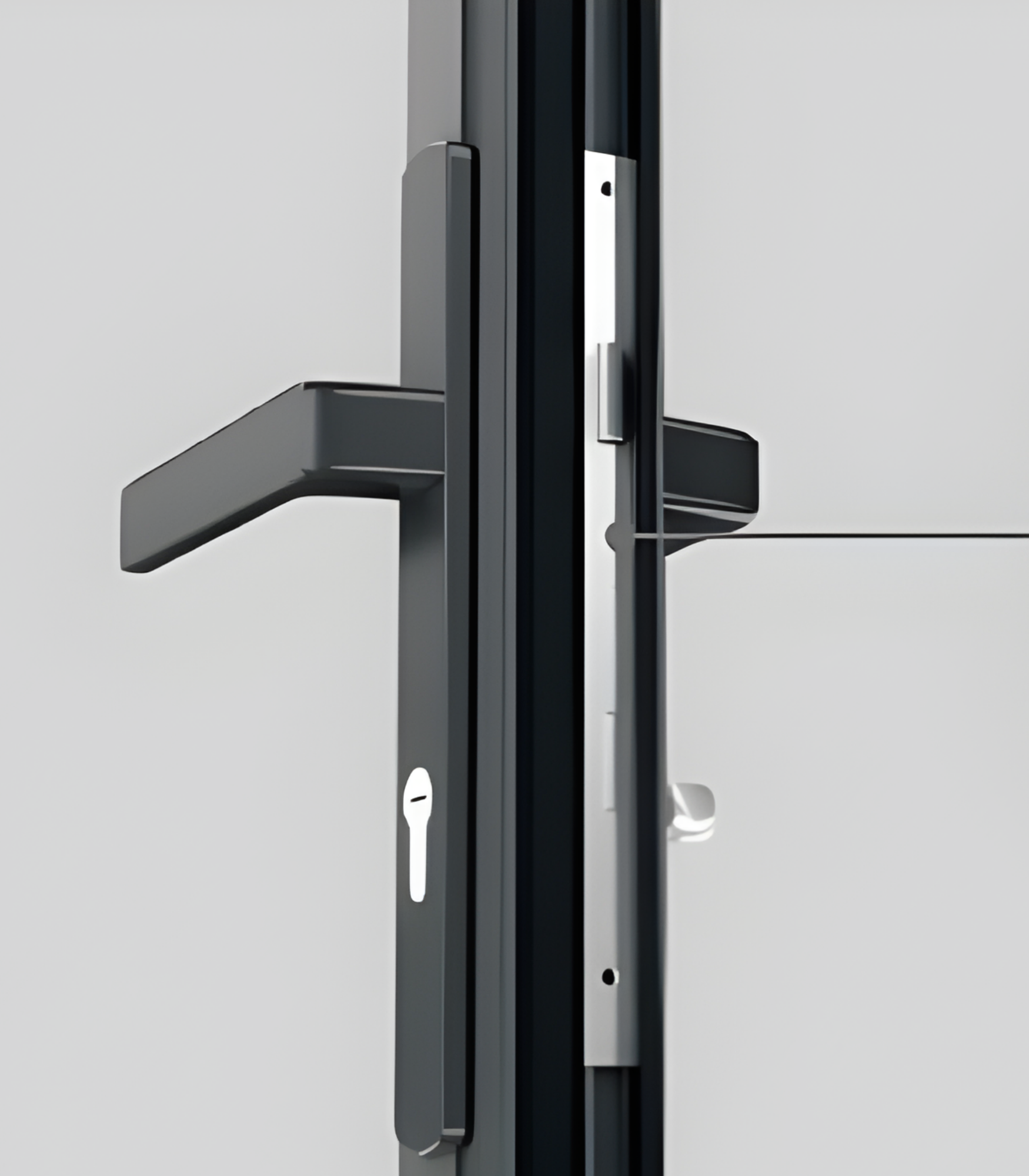

Security & Hardware - Multi-point locking engages the frame at several independent positions every time you lift the handle. That distributes forced-entry resistance across the entire door perimeter instead of one vulnerable latch point. The aluminum frame itself resists prying and flexing far better than wood or fiberglass alternatives.

Color & Glass Options

Six finishes let the VLX 100 adapt to almost any architectural language in Coral Gables. Premium Black is the default choice for modern and transitional homes; it reads sharp against white stucco and works beautifully with black-framed window packages. Pure White softens the door’s presence and pairs well with Mediterranean facades, especially those with warm terracotta or cream tones. Anodized Silver gives a crisp metallic look that holds up remarkably well against salt air and UV without fading.

Bronze leans warm and grounded, a natural fit for Tuscan-style homes and older Coral Gables estates with darker roof lines. Champagne is a lighter metallic that works with contemporary palettes, often paired with sand-toned stucco. The Teak Wood finish mimics the warmth of timber without the rot, termite, and maintenance issues real wood brings to South Florida.

For glass, Clear maximizes light and visibility; Low-E cuts heat transmission on south- and west-facing entries; Tempered meets code for any glazed swing panel; Laminated is the impact option for hurricane protection; and Frosted or Obscure solves street-privacy concerns without sacrificing daylight.

Installation by TruePane Windows & Doors in Coral Gables

Here’s the part most people don’t think about until it’s too late: an entry door is only as good as the four inches around it. We see failed doors in Coral Gables all the time that were fine doors ruined by bad installation. Water got in at the sill. The frame was shimmed out of square. The perimeter was never sealed properly. The manufacturer warranty covers the door, not the installer’s mistakes, which is why who installs the VLX 100 matters as much as the door itself.

Our crews in Coral Gables follow a defined sequence on every entry door install. We start with a pre-installation inspection of the rough opening: checking the substrate, verifying the opening dimensions, and confirming there’s no hidden rot or termite damage at the threshold. In older Coral Gables homes, especially those built before modern flashing standards, this step catches problems you don’t want sealed inside a wall.

We set the frame level, plumb, and square, then anchor it per the manufacturer’s engineering, not per whatever’s fastest. Every perimeter joint receives AAMA 812 low-expansion foam sealant to stop air and water at the frame-to-wall interface. The installation conforms to AAMA 2400/2410 standard practice, which the manufacturer recognizes for warranty coverage. After the door is hung and hardware installed, we run a final water test around the sill and threshold, then walk you through operation, locking, and maintenance. No shortcuts, no caulk-and-run.

Coral Gables building code and the local high-velocity wind zone make professional installation non-negotiable for a door like this. We handle permits where required and make sure the finished entry meets inspection the first time.

Frequently Asked Questions - VLX 100 Swing / Entry Door

Get a Quote - VLX 100 Swing / Entry Door in Coral Gables

You don’t buy an entry door every year, which means you should get this one right the first time. We’ll measure your opening, walk you through glass and finish options, and deliver a written quote with no surprises. Call (954) 507-3613 to schedule your free on-site measurement in Coral Gables and get the VLX 100 priced for your home.

Written by the team at TruePane Windows & Doors, serving Coral Gables as an authorized ViewLux installation partner.
